使用Styrocoat制作轻质发泡道具

概述


Overview
The Spoon Group (Rahway, NJ) is a world-renowned prop and set fabrication shop. Not only do they produce props and set pieces for television and commercial projects, but the Spoon Group has also created pieces for Broadway productions of Grease!, Legally Blonde, Xanadu, Phantom of the Opera, Les Miserables, Chitty Chitty Bang Bang, The Color Purple, 42nd Street, Chorus Line, Dracula, and many more.

For the Broadway production of Dracula, many large "marble" set pieces were needed. They had to look like heavy carved stone but also be lightweight enough to be "flown" on stage rigging between scenes. It was decided that carved foam would be used for the larger setpieces, but carved foam is notoriously hard to paint and very fragile.

Enter Styrocoat™ – Styrocoat sprayable styrofoam coating was used to give the carved foam set piece a rigid, paintable surface as well as increased strength. The EZ-Spray™ Jr. gun used to apply the Styrocoat is a very easy system to load and use, and the cartridge-based system means that there is virtually no clean up.

Materials Used in this Tutorial Step 1: Preparing and Spraying Styrocoat

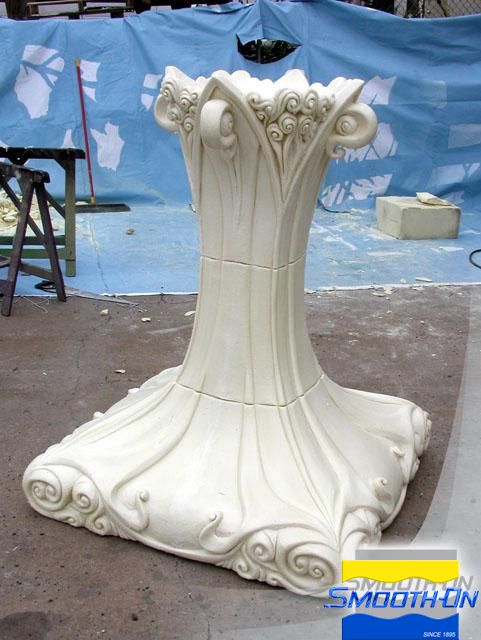

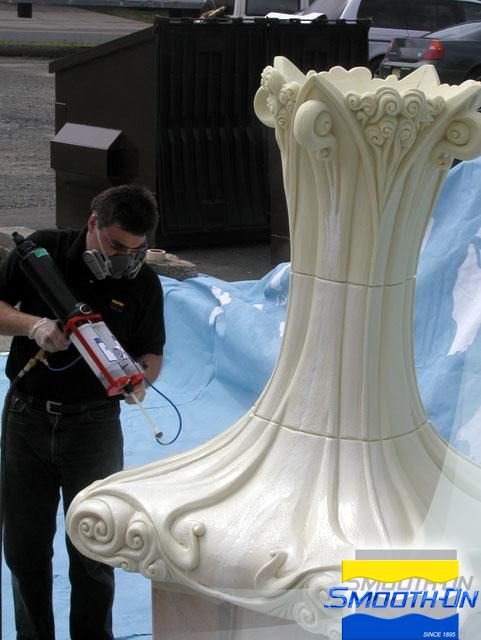

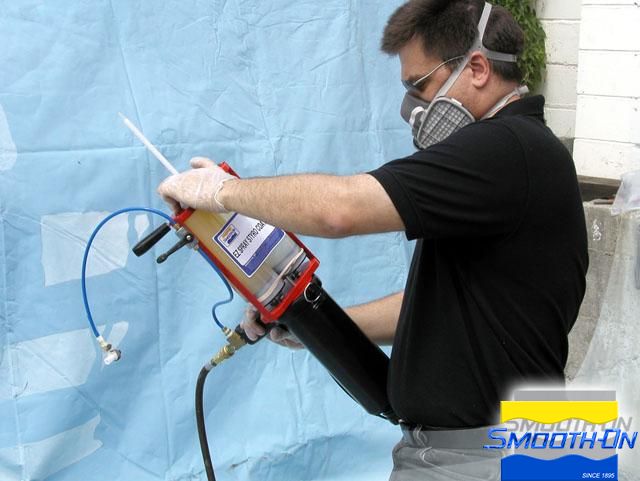

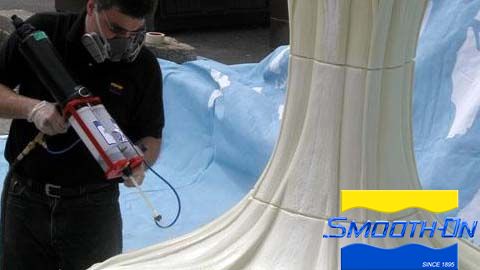

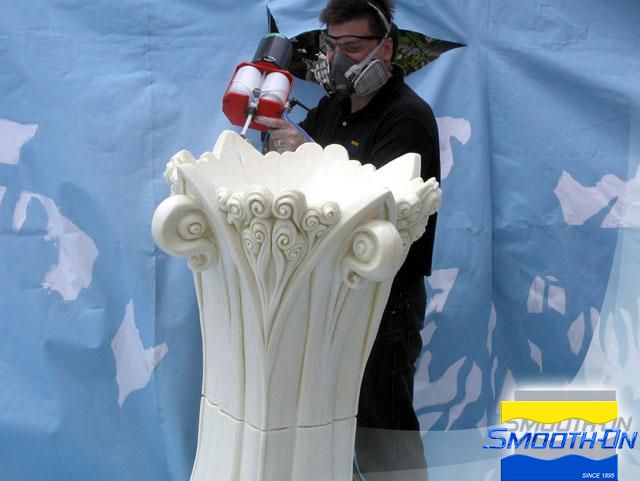

To begin, a Styrocoat® cartridge is loaded into the EZ-Spray Jr. gun to be sprayed onto the carved foam set piece. Care is taken to ensure that all angles of the piece are completely covered. The Styrocoat® must be left to cure for at least one hour.









Step 2: Sanding Styrocoat and Priming For Paint

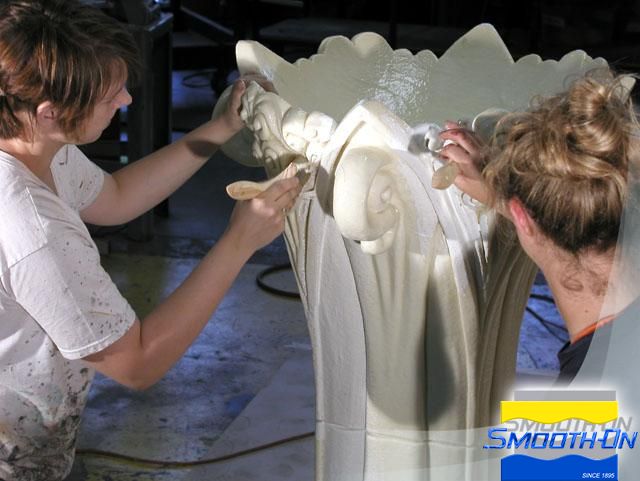

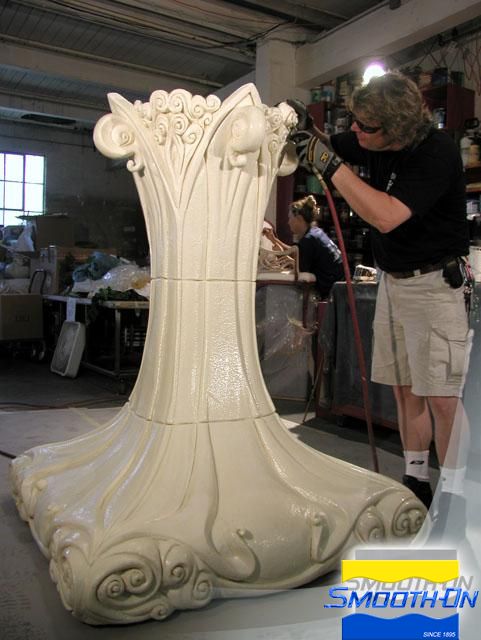

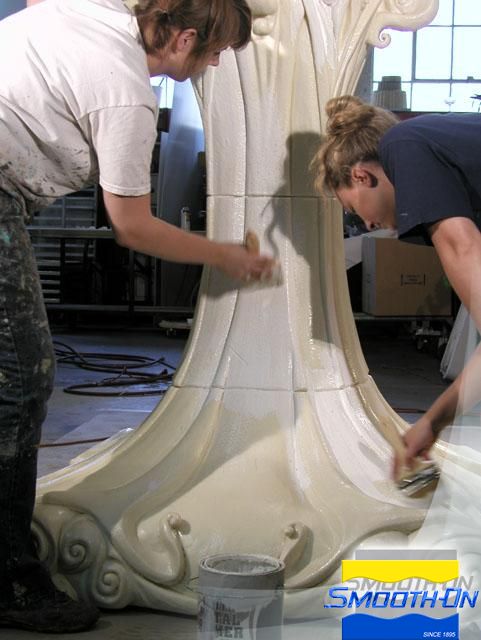

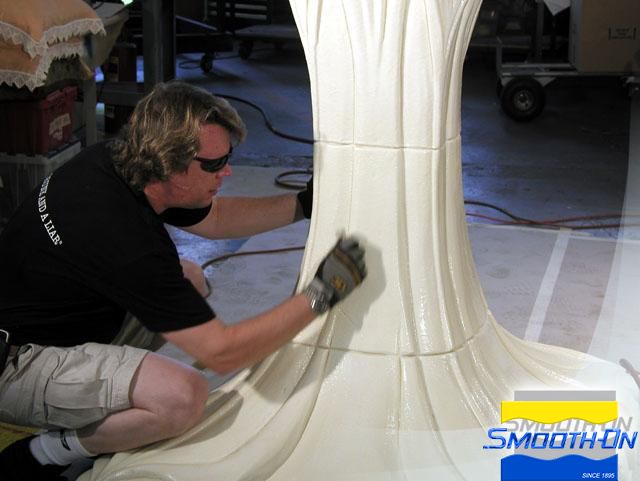

After the Styrocoat® cures the surface is sanded smooth. The surface is hand sanded to produce a paintable finish. After sanding, the first coat of primer is applied.
A second coat of primer is applied to give the piece a 'marble' look.









Step 3: Finishing

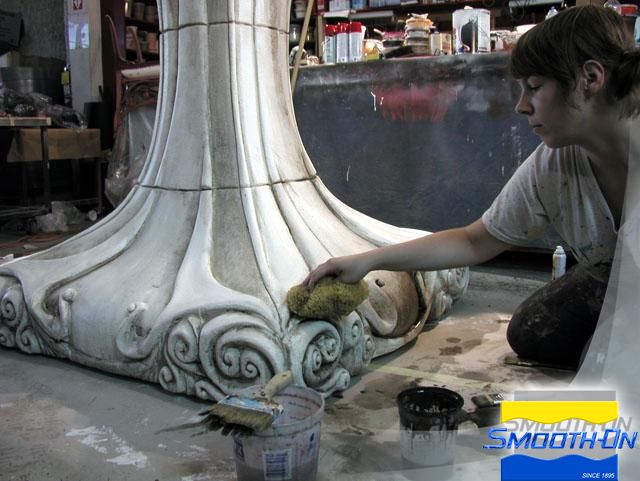

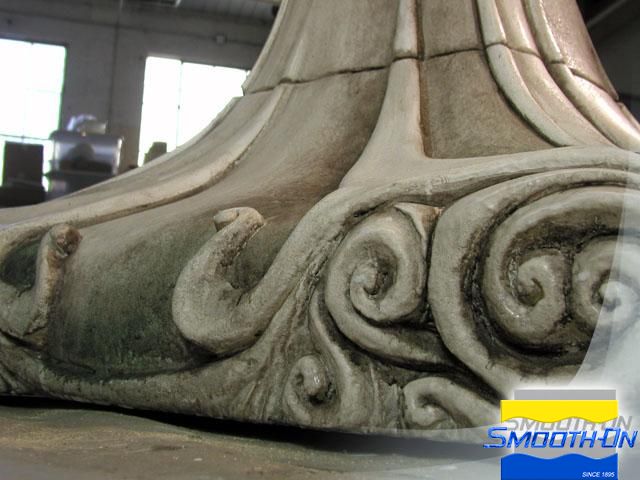

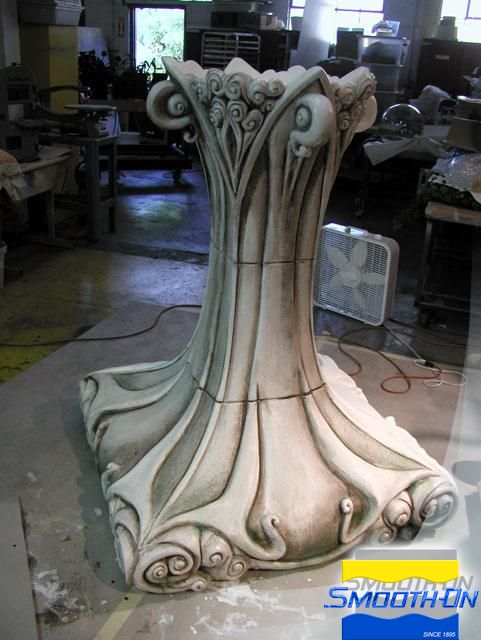

After the primer is thoroughly dry, the detail painting takes place. Faux finishing painting techniques are used to give the piece a 'distressed' look and the set piece is left to dry overnight. The finished piece has the look of carved stone, yet weighs only pounds.
