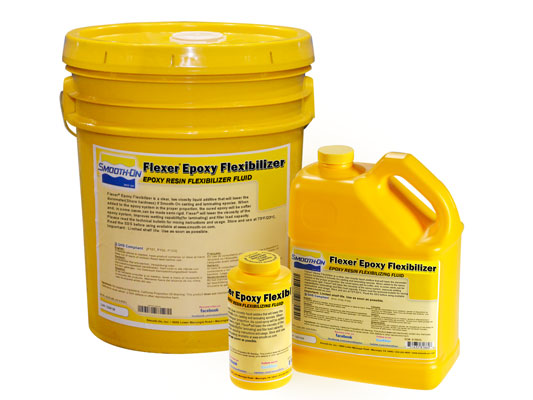

Flexer® Epoxy Flexibilizer

Flexer® Epoxy Flexibilizer

Flexer®EpoxyFlexibilizer为透明、低粘度液体添加剂,可降低某些Smooth-On浇注和层压环氧树脂的硬度(邵氏硬度)。当以适当的比例添加到环氧树脂体系中时,固化后的环氧树脂会更柔软,并且在一些情况下,可以制成半刚性树脂。Flexer®降低环氧体系的粘度,提高润湿能力(用于层压)和填充物的添加能力。

特征

使环氧树脂为半刚性 - 制成不易碎的物件,并提高抗冲击性。
选择预期结果 - 固化后环氧体系的物理和应用性能可能会随着添加量的增加而降低。一旦添加了Flexer®,产品将保持柔软性。
较低的粘度 - 有助于对可浇注树脂进行脱气,并有助于层压环氧树脂润湿复合增强材料(玻璃纤维布,Kevlar等)。


说明

PREPARATION


Read and follow directions given on the technical bulletin for the EpoxAcast® or EpoxAmite® product before adding Flexer®.
Store and use all materials at 73°F / 23°C. Avoid breathing fumes - use in a well ventilated area at minimum. NIOSH approved respirator is recommended. Wear safety glasses, long sleeves and rubber gloves to minimize skin contact.


MEASURING AND MIXING
Flexer® Epoxy Flexibilizer is added by weight as a percentage of Part A. An accurate gram scale is required. Add Flexibilizer to Part A of the epoxy system and mix thoroughly. Add the appropriate amount of Part B and mix all components thoroughly.

Example:
Goal – Soften EpoxAcast 650 from a Shore 90D to a Shore 60D. Normal mix ratio: 100A:12B

EpoxAcast® 650
Part A
+ Flexer®
Flexibilizer
Mix
Thoroughly
+ EpoxAcast® 650
Part B
Mix
Thoroughly
Pour &
Let Cure
1,000 grams   150 grams     120 grams

Important: Working time and cure time will be increased in proportion to the amount of Flexibilizer added. Physical and performance properties (including Shore hardness) of cured epoxy system may be lower in proportion to the amount of Flexer® added. Do not exceed recommended loading maximum of 20% of epoxy Part A, as the epoxy system may not cure.

Epoxy % of Flexer® Added
To Part A
Pot Life (Minutes) Shore D Hardness
After 48 Hours
Shore D Hardness
After 7 Days
EpoxAmite® 100
101 Hardener
0 % 11 82 84
5 % 18 80 80
10 % 25 77 77
15 % 30 75 75
20 % 40 70 70
EpoxAmite® 100
102 Hardener
0 % 22 80 80
5 % 60 78 78
10 % 120 76 76
15% 135 72 73
20 % 150 65 70
EpoxAcast® 650
101 Hardener
0 % 20 90 95
5 % 60 90 90
10 % 180 85 85
15 % 210 75 77
20 % 270 70 70
EpoxAcast® 655
101 Hardener
0 % 30 90 90
5 % 60 85 85
10 % 120 83 83
15 % 150 70 70
20 % 300 60 65
EpoxAcast® 690 0 % 300 75 80
5 % 420 65 75
10 % 570 50 65
15 % * 720 40 55
20 % * 1260 25 35
*Cured EpoxAcast® 690 will remain tacky (sticky to the touch) for 48 hours or more depending on casting mass and thickness.

Because no two applications are quite the same, a small test application to determine suitability is recommended if performance of this material is in question.
